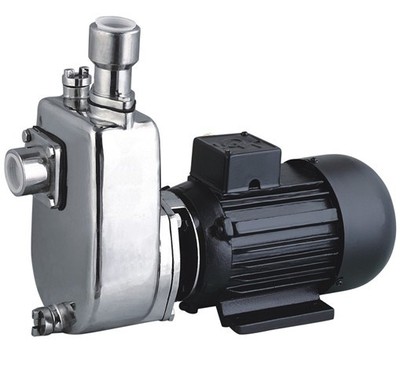

Magnetic Self Priming Pump (ZCQ)

Featured by reasonable design, advanced technology, full seal, no leakage, corrison resistance etc.,

Compact and reasonable structure
Shaft seal can be mechanical seal or packing seal
Advanced hydraulic model to feature high efficiency and little energy consumption

Working conditions:

Flow: 0.5 to 340m3/h
Head: 2 to 50m
Maximum system pressure: 1MPa
Medium temperature: -15 to +120° C
Motor protections: IP44 and IP54
Insulation: Class B and class F

Applications:
Especially for corrode, flammable and toxic liquid.
